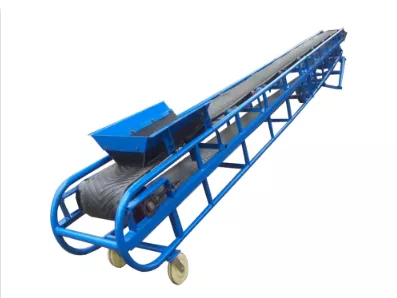

Tá Epic ar cheann de na déantúsóir, táirgeoir agus onnmhaireoir feiceálach de chreasa iniompartha sa tSín. A belt conveyor is mainly composed of two end rollers and a closed conveyor belt tightly sheathed on them.The drum that drives the conveyor belt to rotate is called the driving drum(driving drum);Another drum that only changes the direction of the conveyor belt is called the reversing drum.The driving drum is driven by a motor through a reducer, and the conveyor belt is driven by the friction between the driving drum and the Crios iompair. Is iondúil go suiteáiltear an druma tiomána sa deireadh urscaoilte, chun tarraingt a dhéanamh, a chabhródh le tarraingt.
Struchtúr dlúth, feidhmíocht iontaofa, buan, éasca le hiompar.
Múnla | Py50 | Py50 | Py50 | Py65 | Py65 | Py65 | Py80 | Py80 |
Bandaleithead (mm) | 500 | 500 | 500 | 650 | 650 | 650 | 800 | 800 |
Luas téipe (m/s) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.6 | 1.6 |
An uillinn uasta snámh (°) | 19 | 19 | 19 | 19 | 19 | 19 | 16 | 19 |
Cumas iompair (m³h) | 80 | 80 | 80 | 135 | 135 | 135 | 262 | 296 |
Fad a iompar (m) | 10 | 15 | 20 | 10 | 15 | 20 | 15 | 20 |
Airde Uasta (M) | 3.73 | 5.44 | 7.09 | 3.73 | 5.44 | 7.09 | 5.1 | 2.4 |
Airde íosta (M) | 0.5 | 1.27 | 1.27 | 0.5 | 1.27 | 1.27 | 2.9 | 3.0 |
Cineál mótair | Y100L2-4 | Y112M-4 | Y132S-4 | Y112M-4 | Y132S-4 | Y132M-4 | Y132M-4 | Y132M-4 |
Cumhacht Mótair (KW) | 3 | 4 | 5.5 | 4 | 5.5 | 7.5 | 7.5 | 7.5 |
meáchan (kg) | 847 | 1123 | 1540 | 1189 | 1950 | 2300 | 2700 | 3100 |
